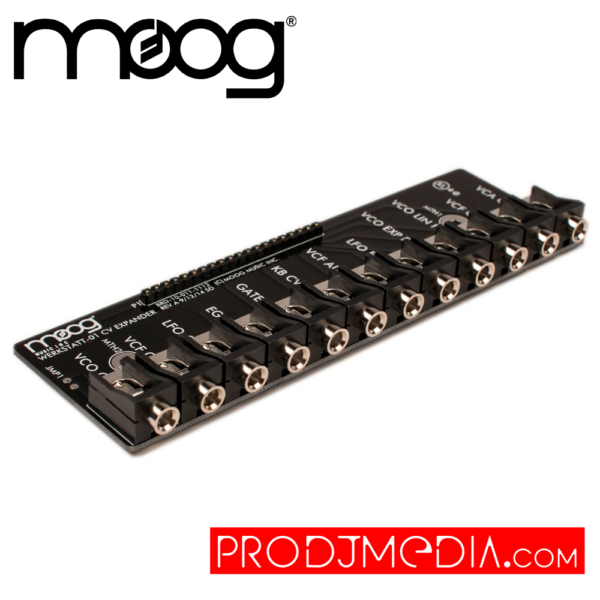

El MOOG Werkstatt-01 CV Expander permite añadir al Werkstatt, 12 conexiones tipo jack de 3.5mm para interactuar fácilmente con equipos analógicos externos equipados con CV (Control de voltaje).
Especificaciones técnicas:
Entradas:
VCA: 0V to +5V in VCA EG Mode, +/-2.5V in VCA ON Mode
VCF: -5V to +5
VCO LINEAR FM: +/-2.5V (Inverting control input)
VCO EXPONENTIAL FM: -5V to +5V, 1V/Octave, trimmable
LFO CV: – 5V to +5V (Negative CV slows LFO more than panel)
VCF AUDIO: Unbuffered/Unmixed AC coupled input to VCF.
Salidas:
KB CV: Nominal 0.3V/semitone from 1 octave keyboard (Attenuate for 1V/Octave)
GATE: 0V (off) to +5V (on) gate signal generated from low note priority/ legato Keyboard circuit. (Esta jack puede ser usado también como GATE INPUT.)
EG: Simple ASD or AD type Envelope Generator, 0 to +5V signal
LFO: -2.5 to +2.5V wave shape selected from LFO Wave Switch.
VCF: -2V to +2 V signal for audio or CV uses.
VCO: 0V to +5V signal, shape selected by VCO Wave Slide Switch
